Simcone has rich experience in designing and producing silicone keypads for a wide range of applications.such as Machinery,Medical,Military,Banking,security and so on.No matter how the product be required multicolor keys or colorful characters,we can achieve our customer’s needs.Even if high demanding for surface,we can do well as well.Nowadays,Simcone manufactures rubber keypads for many famous brands over the world.
Silicone keypads are made using compression molds. Compression molds have a bottom tool and a top tool half. The molding process is very similar to how Belgian waffles are made.
First the mixed raw silicone material is cut into precisely cut slabs. Next the material is laid in the mold. Pressure, heat and time are used to transform the material to the shape of the cavity. The parts are removed from the tool, flash is hand torn and then the parts are post-cured to remove any residual catalyst material.

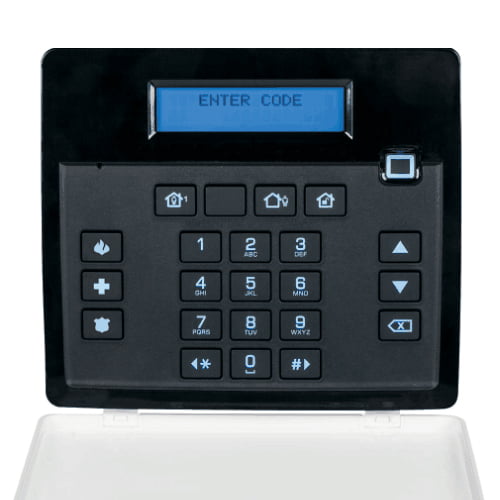

Security system
Remove from oven
laser etching+PU coating
General Information
| 1 | Description | Silicone Rubber Keypad |
| 2 | Material | 100% Silicone Rubber |
| 3 | Color & Size | Any color&size available, single or multiple colors |
| 4 | Hardness | Between 30-90 shore A |
| 5 | Legend/Letter/Graphic | Printing and Laser etc |
| 6 | Conductive Contact | Ink printing, Carbon Pill |
| 7 | Finish | Matt or Gloss,Silk-screen printing, Laser etching, Back-lighted,Epoxy Resin Coating,Spary coating, hard/epoxy coating, PU coating ect. |
| 8 | Mold life | 1,000,000 shots |
| 9 | Package | polybag+carton |
| 10 | Delivery time | 12-15days for mold of Silicone rubber Keypad, 5-7days for mass production |
| 11 | Applications |
|
| 12 | Specification | Confirm to ISO-9001 and ROHS Directive Compliant Green Products |
| 13 | Trade Term | Ex-works, FOB Shenzhen, CIF |
| 14 | Payment Term | Payment by T/T |
